Complete PVC Corrugated Pipe Plant for Single Wall Pipes with 300mm to 1600mm Diameter Range and High Productivity
Póngase en contacto conmigo para muestras y cupones gratis.
whatsapp:0086 18588475571
El Wechat: 0086 18588475571
¿ Qué pasa?: sales10@aixton.com
Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.
xDatos del producto
| Materia prima | PE, PP, HDPE/PP, PVC | Características | Alta productividad,precio competitivo,ahorro de energía,automático |
|---|---|---|---|
| Componentes eléctricos | Siemens | Rango de tubería | 32-1600 mm |
| Tipo | Estándar o personalizado | Capas del tubo | Pared única, pared doble, muro múltiple |
| Utilizado para | Hacer tubería de plástico | Tipo de enfriamiento | Refrigeración del aire o por agua |
| Resaltar | Complete PVC Corrugated Pipe Plant,300mm to 1600mm Diameter PVC Pipe Extrusion Line,High Productivity Corrugated Pipe Production Line |
||
Puede marcar los productos que necesita y comunicarse con nosotros en el tablero de mensajes.
Descripción de producto

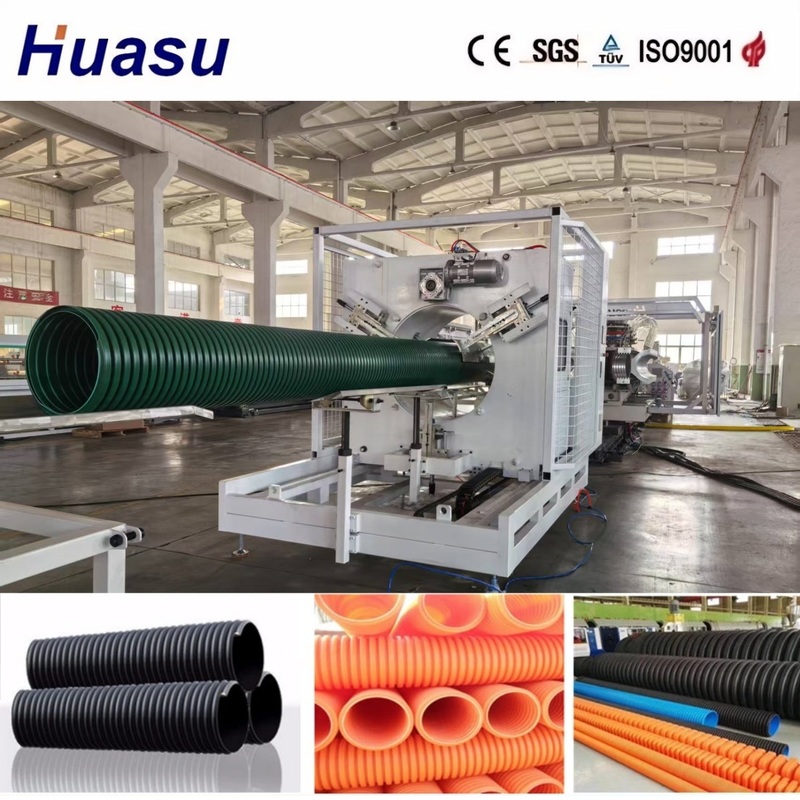

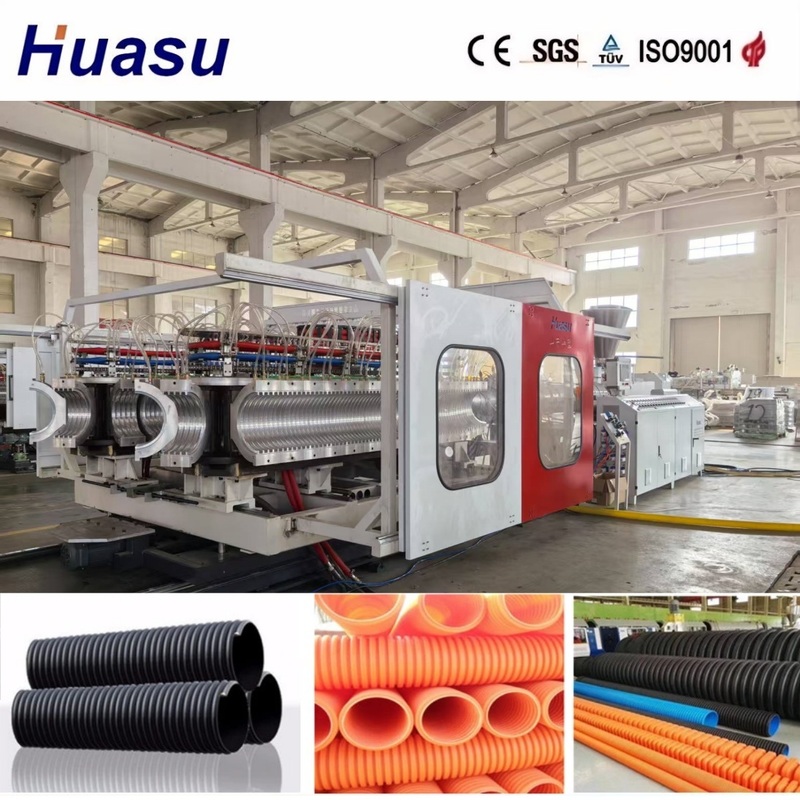

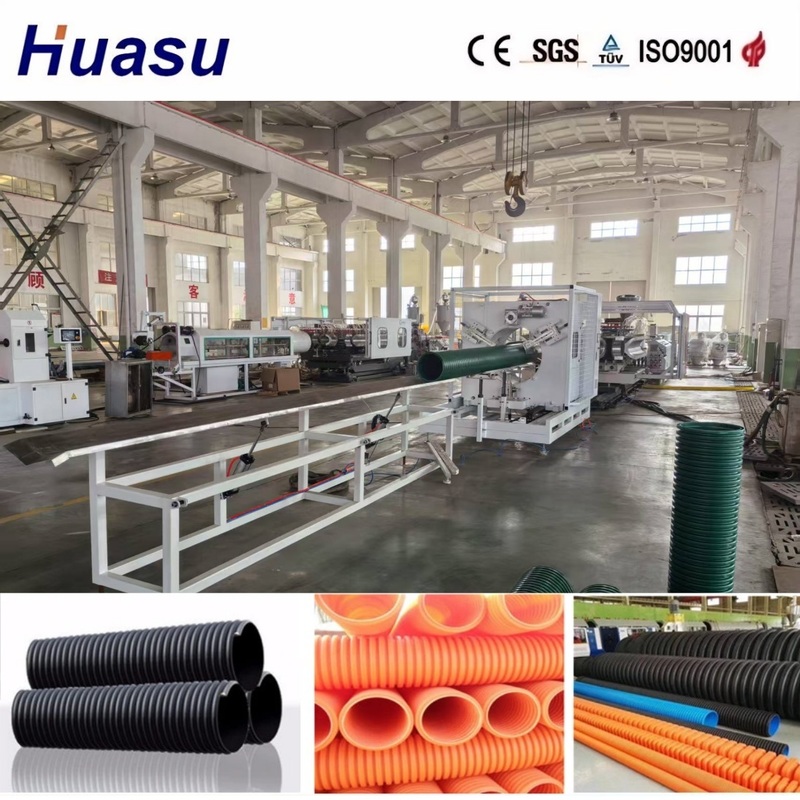

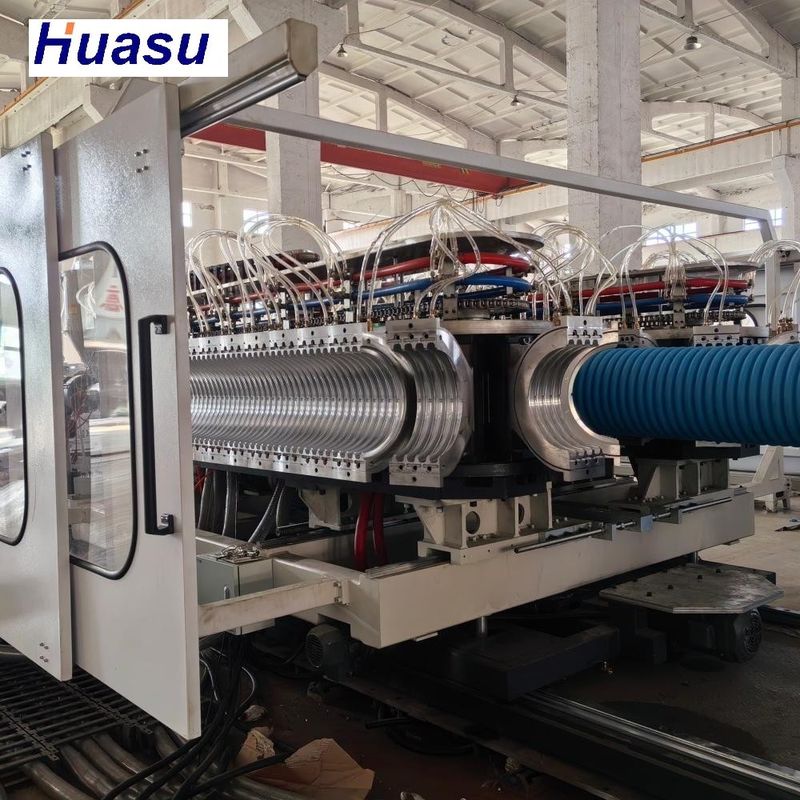

Complete PVC Corrugated Pipe Plant for Single Wall Pipes (300mm - 1600mm Diameter)
The PVC/PE/MPP corrugated pipe production line features dual single-screw extruders for simultaneous extrusion of inner and outer plastic layers. Our precision temperature control system and optimized screw design ensure uniform plasticization and stable material flow for high-speed production.
The pipe head incorporates a precision flow channel design that efficiently laminates inner and outer layers, guaranteeing uniform wall thickness, high concentricity, and superior resistance to delamination. The modular configuration enables rapid switching between multiple pipe diameters while maintaining dimensional accuracy and structural stability at high production speeds.
This third-generation double wall corrugated pipe line from Shandong HUASU delivers 20-40% increased output and production speed compared to previous models. The system features integrated online belling for immediate pipe forming and utilizes Siemens PLC control for efficient operation management.
Key Features
Pressure water-cooling for mold blocks significantly increases production speed
Low energy consumption design reduces operational costs
High-efficiency vacuum system ensures flawless pipe formation
Precision mold temperature control enhances internal and external pipe quality
Quick-change mold system compatible with multiple production lines
Fully automated extrusion line operation
Synchronized corrugator and extruder control for manufacturing consistency
Hardened screws and barrels for extended equipment lifespan
Comprehensive remote service support
Technical Specifications
| Raw Material | PE, PP, HDPE/PP, PVC |
|---|---|
| Type | Standard or Customized |
| Cooling Type | Air or Water Cooling |
| Pipe Range | 32-1600mm |
| Application | Drainage Pipe, Municipal Engineering, Underground Sewage Pipe, Electric Cable Conduit |
| Max. Line Speed | 3-15m/min |
| Electric Components | Siemens |
| Features | High Productivity, Competitive Price, Energy Saving, Automatic |
| Control Concept | PLC |
| Used For | Plastic Pipe Manufacturing |
Applications
Our advanced pipe production system is engineered for manufacturing high-quality plastic pipes used in water supply networks, drainage systems, and electrical cable protection. The machine produces durable, precision-engineered pipes that meet stringent industry standards for municipal engineering projects, underground sewage systems, and utility infrastructure.
