máquina 450kg/H de la protuberancia del tubo del HDPE del drenaje del agua de 800m m

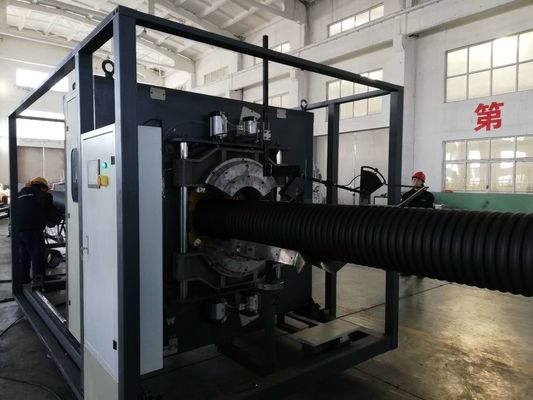

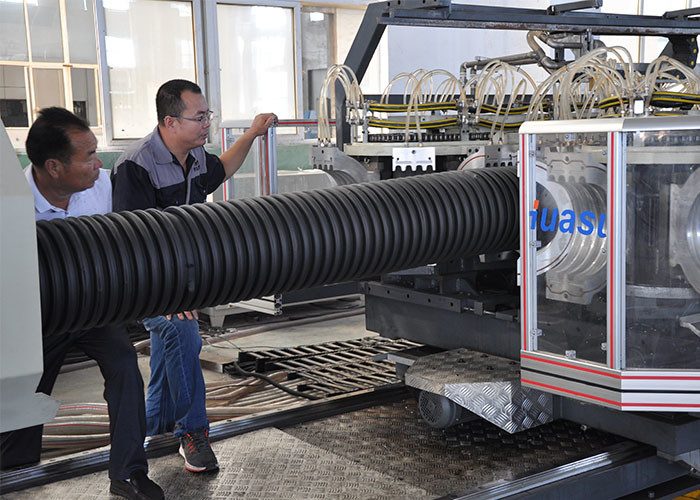

800mm Water Drainage And Electrical Conduit PE/PP Pipe Making Line Production Line

Below is the configuration for part of the extrusion line, for more details please contact Ellen Liu.

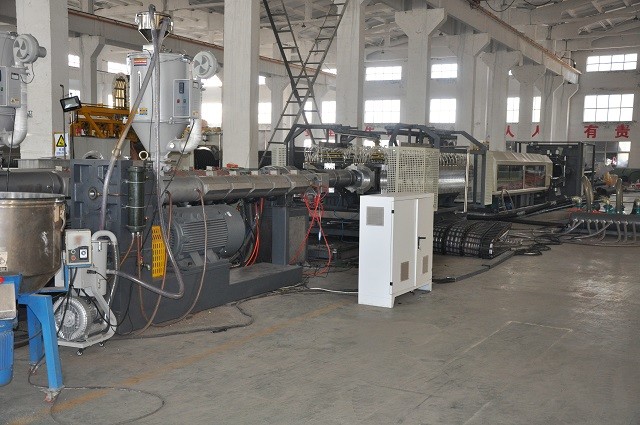

1.0 Single Screw Extruder SJ-120/33
Screw structure: Spiral barrier type screw with mixing section, which greatly improves the plasticizing quality and output; especially suitable for high-efficiency extrusion of materials such as PEPP, and has a wide range of material adaptability;
Barrel structure: Segmented, asymmetrical slotting barrel design, the feed inlet has a water cooling system with automatic temperature control, which greatly improves the conveying efficiency of the feeding section;
Gearbox: The gearbox adopts a vertical structure, the cooling method is forced circulating oil cooling, with a circulating water cooling system. High torque, low noise, hard-tooth surface gear, gear grinding process, heavy-duty thrust bearing;
Automatic feeder, dryer: Automatic feeder inductive design, with material shortage alarm function. The dryer adopts an integrated design of drying and storage, automatic temperature control and intelligent display with all stainless steel lining;
Temperature control: Imported PLC control system, dual PID parameter temperature control, temperature control accuracy ±1℃;
Technical parameter
--Screw hardness of screw HV>740
--Barrel hardness of barrel HV>940
--Material 38CrMoALA, nitriding handling
--Barrel nitriding depth 0.4～0.7mm
--Screw nitriding depth 0.3～0.6mm
--Barrel feeding section Slotted barrel with water-cooled forced feeding
--Screw diameter 120mm
--L: D 33:1
Heating & Cooling
--Barrel heating zone 7 zones × 5kw
--Barrel cooling 7zones×0.37kw
--Barrel heating power 37.59kw
Driving
--AC motor 315kw
--Inverter Hitachi or ABB
--Gearbox Hard gear surface
--Gear material 20CrMnTi,
--Gear type helical gear
Feeding - Dryer System
--Automatic vacuum feeding machine 1pc
--Automatic hopper dryer 1pc

2.0 Single Screw Extruder SJ-90/33
Technical parameter

--Screw hardness of screw HV>740

--Barrel hardness of barrel HV>940

--Material 38CrMoAlA

--Depth of barrel nitriding 0.4--0.7mm

--Depth of screw nitriding 0.3-0.6mm
--Barrel feeding section Slotted barrel with water-cooled forced feeding

--Screw diameter 90mm

--L: D 33:1

Heating & cooling

--Barrel heating zone 5zones × 4kw

--Barrel fan cooling 5zones × 0.25kw

--Barrel power 22.5kw

Driving

--AC Motor 132kw
--Inverter Hitachi or ABB
--Gearbox Hard gear surface

--Gear material 20CrMnTi
Feeding - Dryer System
--Automatic vacuum feeding machine 1pc
--Automatic hopper dryer 1pc
